High temperature fiberglass mesh PTFE coated fabric cloth

FOB Reference Price:Get Latest Price
US $3-16 / Square Meter | 100 Square Meter/Square Meters (Min. Order)
Supply Ability:
200000 Square Meter/Square Meters per Month
Port:
Shanghai or shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Core-tex
Model Number:
CT-PTFE
Application:
Fiberglass Mesh Cloth
Weight:
450 GSM - 745 GSM
Surface Treatment:
PTFE Coated
Width:
It can be customized
Weave Type:
Plain Woven
Yarn Type:
E-Glass
Alkali Content:
Alkali Free
Standing Temperature:
-140~360℃
Mesh size:
1*1mm,2*2.5mm,4*4mm,10*10mm
Roll Length:
IT CAN BE CUSTOMIZED
Good Features:
Non-adhesive /Corrosion resistance/Fireproofing /flame resistance
Applications:
Electrical insulation/conveyor belt/Microwave oven
Color:
black, brown, white, or customized
Weight Distribution:
IT CAN BE CUSTOMIZED
Width Max:
3550 mm
MOQ:
100 m2
Keyword:
High temperature fiberglass mesh PTFE coated fabric cloth
Packaging & Delivery
Packaging Details
Wooden case, big roll carton or small carton.
Detailed packing details please refer to the Detailed content in the following.
Delivery Time
5 - 25 Days after the receipt of payment
Product Description

High temperature fiberglass mesh PTFE coated fabric cloth

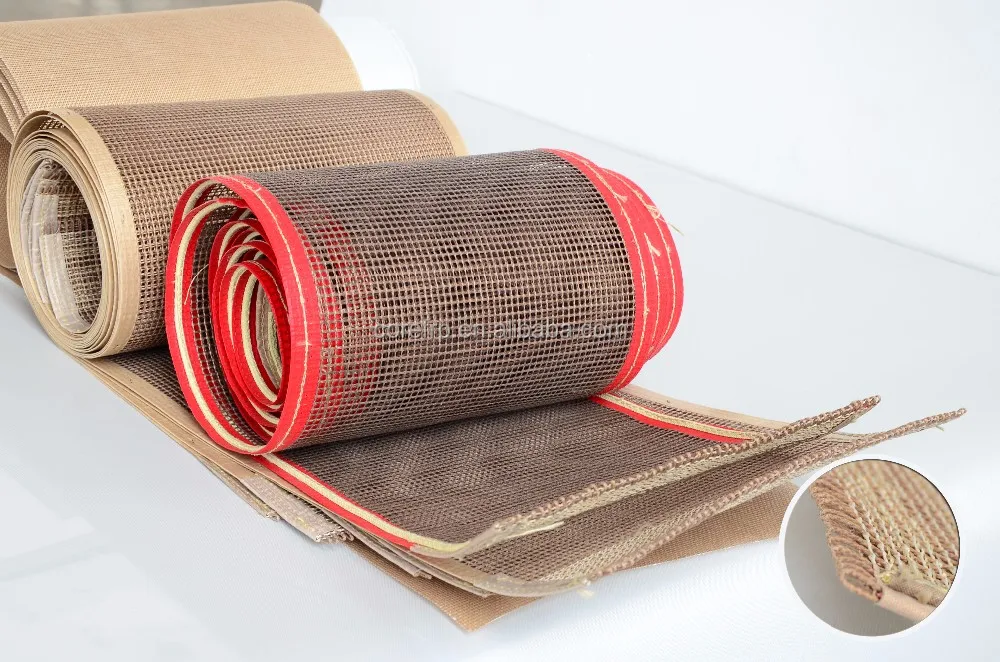

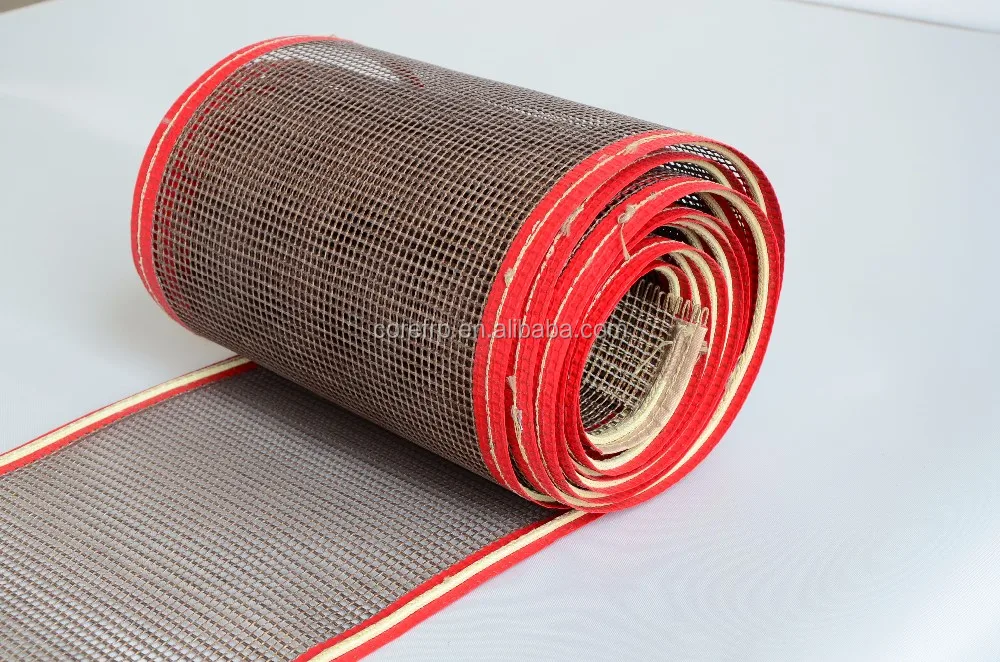

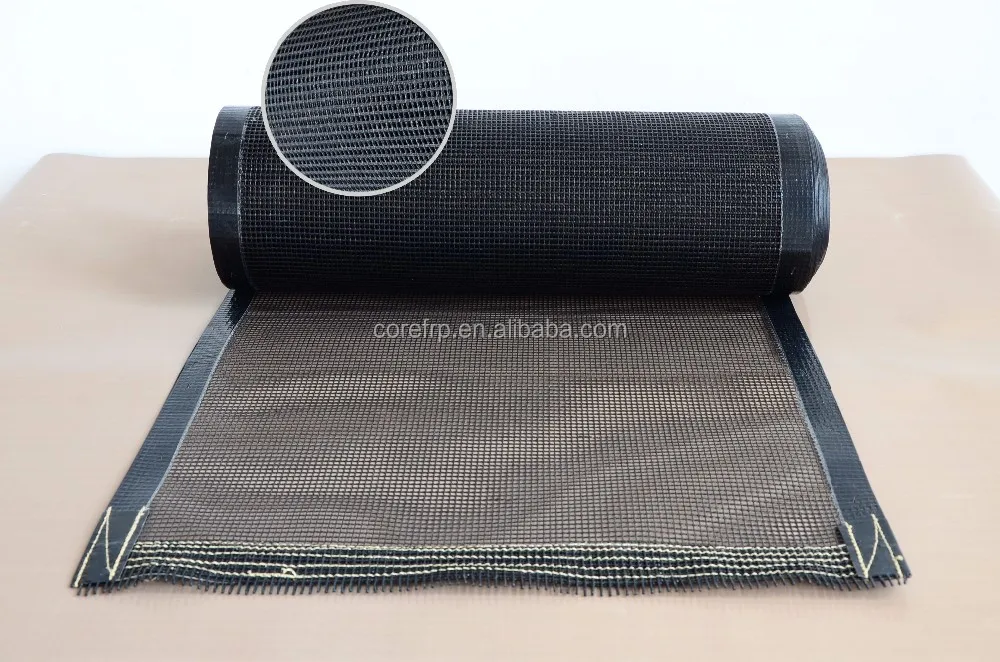

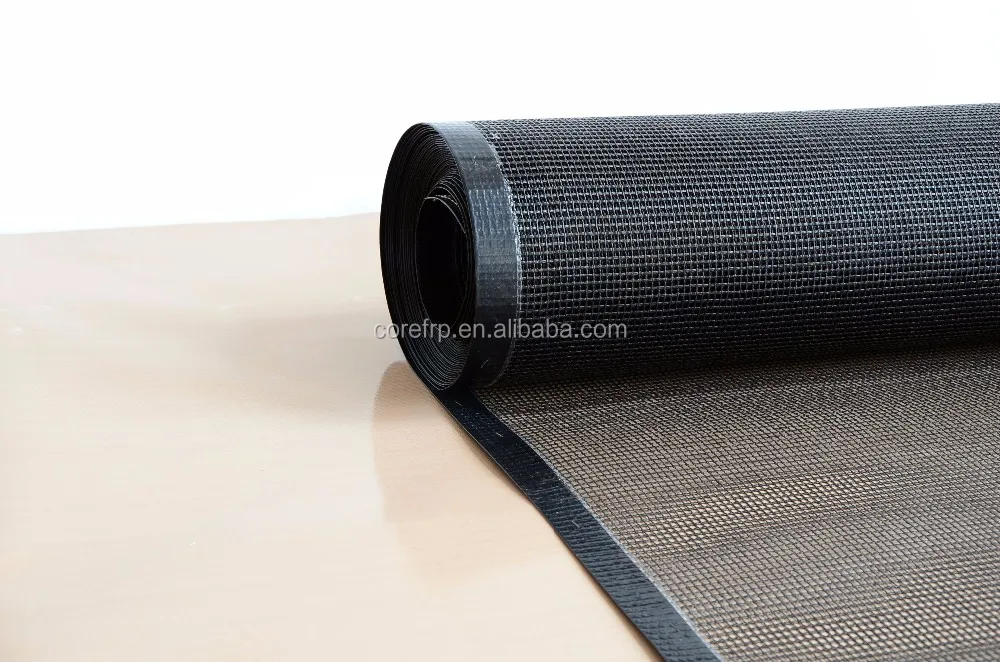

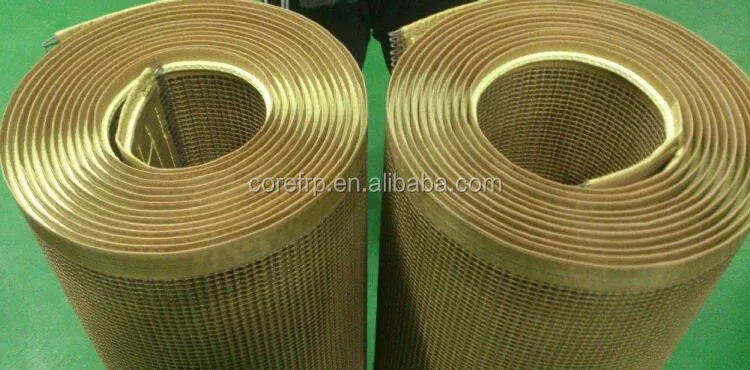

PTFE coated fiberglass open mesh conveyor belt is made of glass fiber fabric impregnated with polytetrafluoroethylene emulsion. It is include mesh size 1mm*1mm, 2mm*2.5mm, 4mm*4mm and 10mm*10mm, and according to the different warp and weft, there are single weft PTFE open mesh conveyor belt and double weft PTFE open mesh conveyor belt.

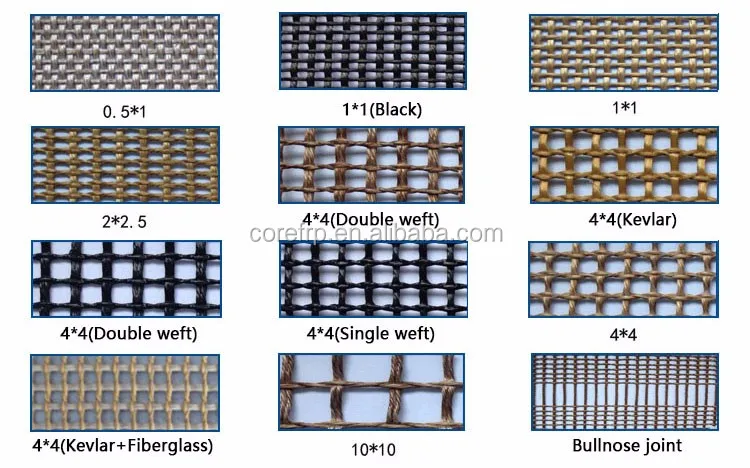

Model
Color
Mesh Size
(mm)
Max Width
(mm)
Weight(g/m2)
Tensile Strength (N/cm)
Temperature resistance (°c)
CT-0091C
Brown
1*1
3550
480±5
1600/1500/5
-70~360
CT-0092
Brown
2*2.5
3550
640±5
2200/1500/5
-70~360
CT-0010
Brown
10*10
3550
450±5
2800/1580/5
-70~360
CT-0090
Brown
4*4
3550
480±5
2100/1500/5
-70~360
CT-0090C
Black
4*4
3550
490±5
2100/1500/5
-70~360
CT-0090S
Brown
4*4
3550
580±5
2200/1600/5
-70~360
CT-0090CS
Brown
4*4
3550
590±5
2300/1800/5
--70~360
CT-0090SH
Brown
4*4
3550
745±5
3200/2700/5
-70~360
CT-0090Kevlar
Brown
4*4
3550
560±5
4000/3700/5
-70~360
CT-0090Kevlar
Brown
4*4
3550
460±5
4800/4500/5
-70~360

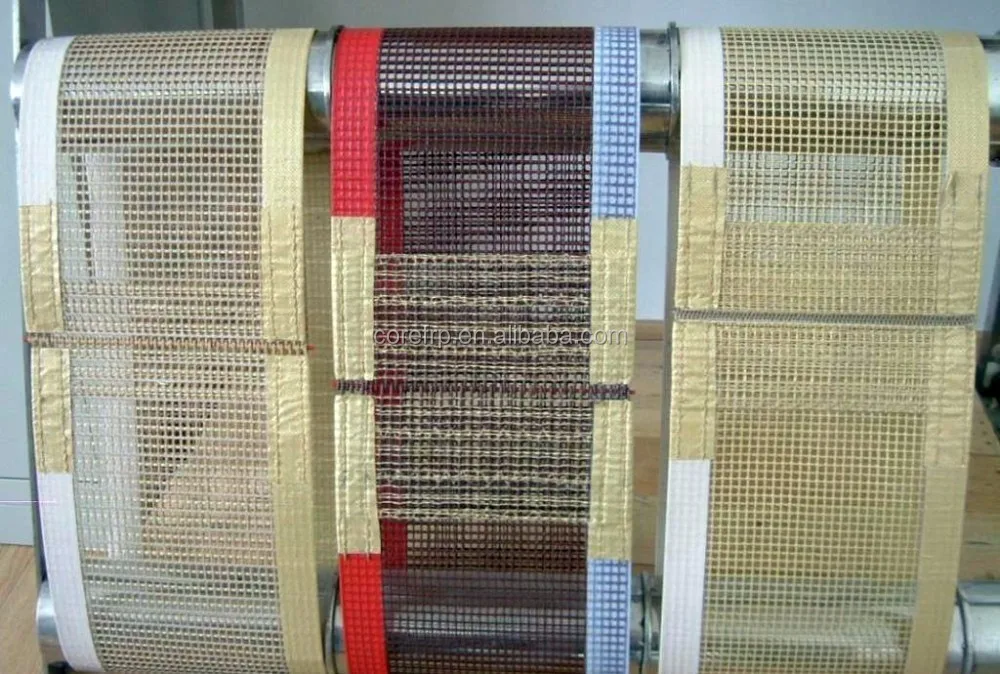

Bullnose Joint.

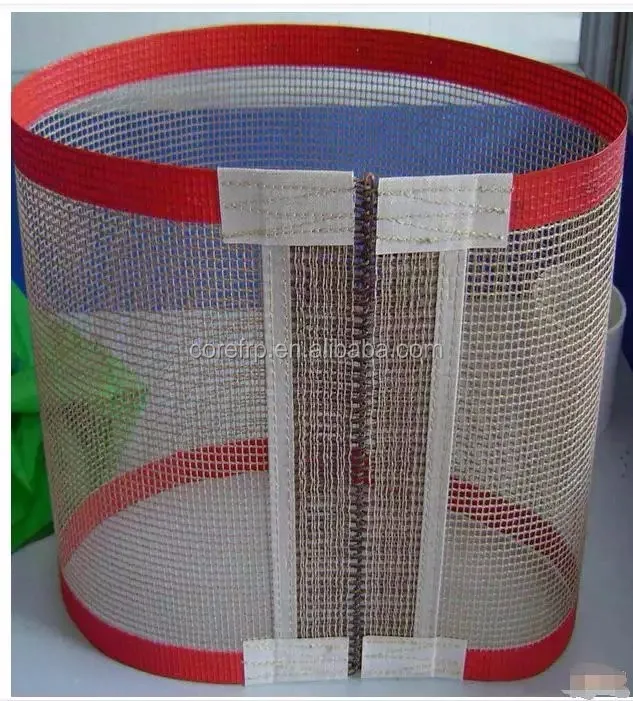

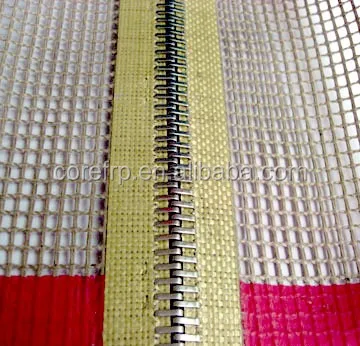

Steel buckle joint.

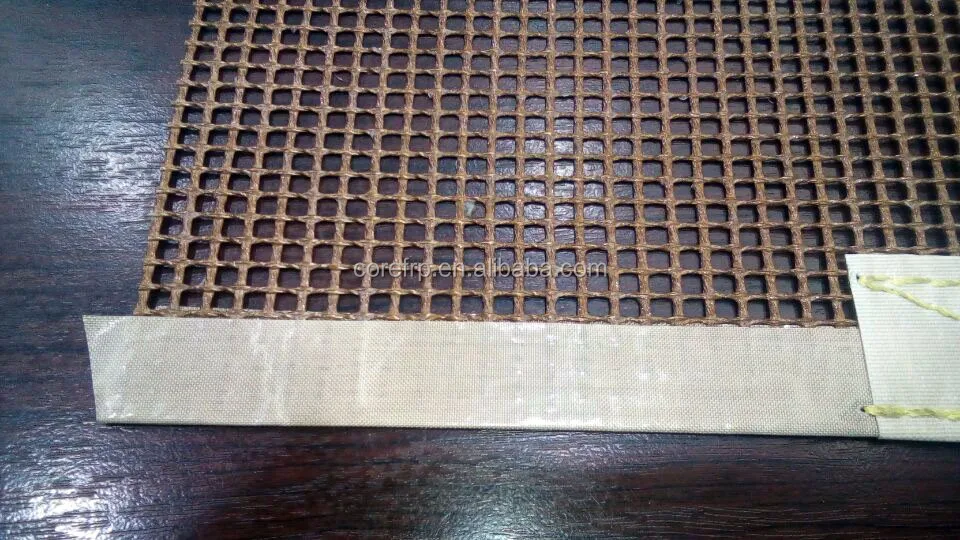

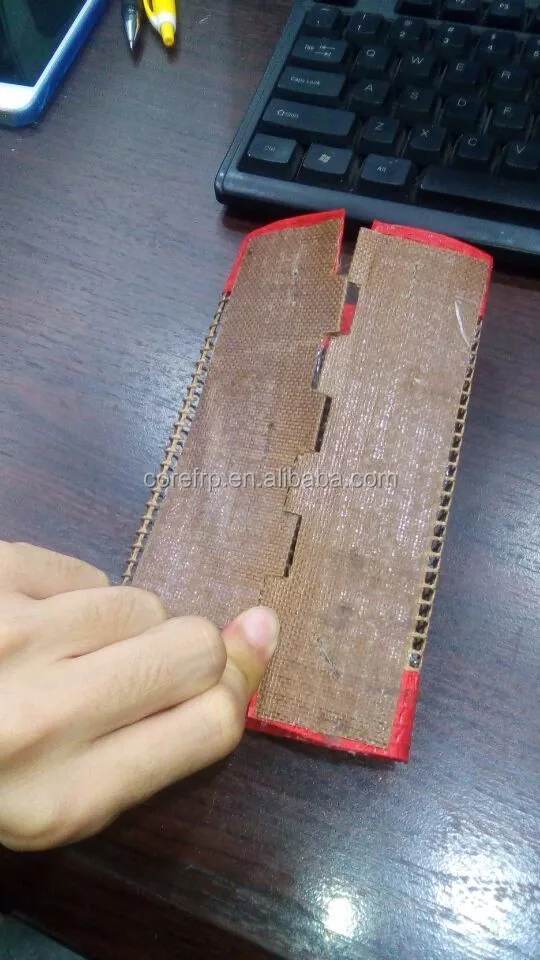

Wall type joint.

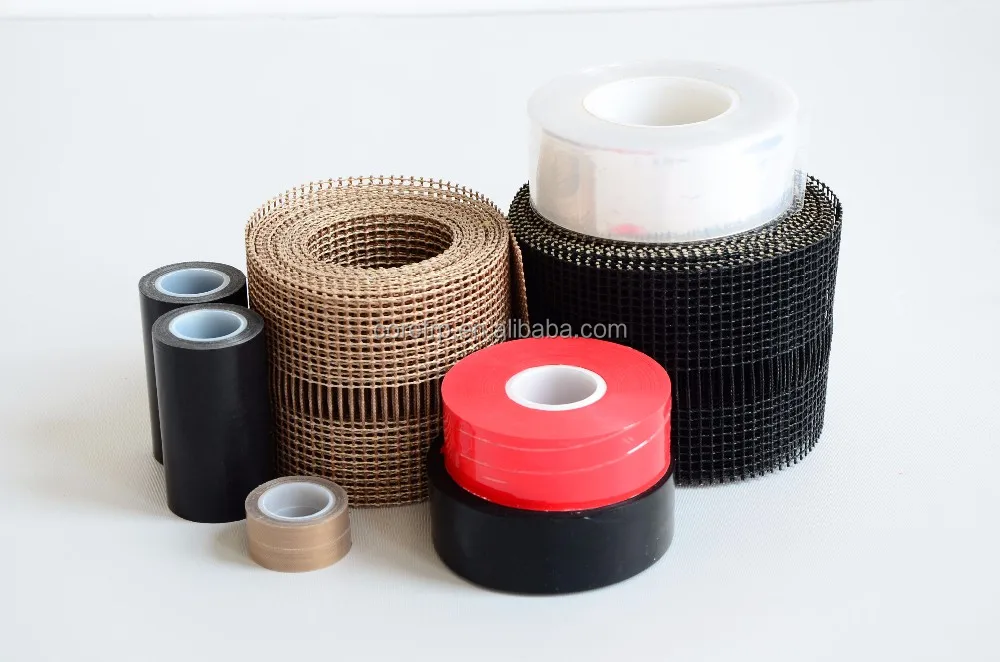

PTFE film.


PTFE coated fiberglass fabric.


PTFE coated Kevlar.


Main Features

*Applied in between -70°C and 360°C, weathering resistance and ageing resistance.
* Resistance to bending fatigue, can be used for smaller wheel diameter.
* Chemical corrosion resistance, Resistance to strong acid, Strong base and a variety of organic solvents.
* Non-stick: Any material is not easy to stick to it. And any stain or spot on it is easy to be cleaned away.
* Chemical resistance and nontoxicity. Resistance to almost all chemical reagents.
* Good dimensional stability (coefficient of elongation less than 5‰) and high strength. Good mechanical characteristics.
* Good mechanical properties.
* Permeability, air permeability of conveyor belt can reduce heat source consumption and improve drying efficiency.
*Fire proof. Even flame cannot cause it burning.

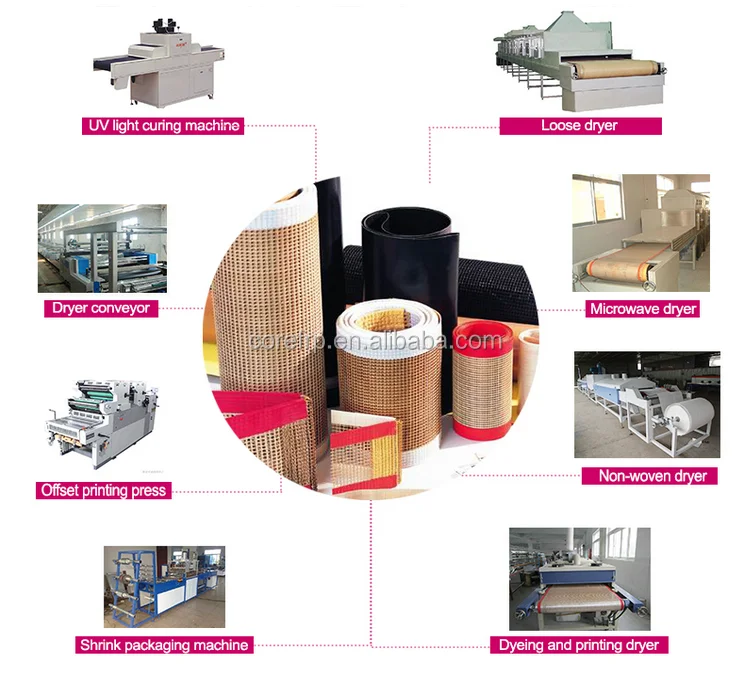

Application

* Textile, printing and dyeing industry
Conveyor belt for Printing drying, Bleaching and dyeing cloth drying, Shrink fabric drying, Non-woven drying etc.

*Silk screen and printing industry
Conveyor belt for Drying machine, Offset printing machine, UV series of light curing machine, Paper oil drying, UV drying, silk screen drying of plastic products etc.

*Others
Conveyor belt for High frequency drying, Microwave drying, Freezing and thawing of all kinds of food, Baking, Packaging materials heat shrink, General moisture content items drying, solvent-based ink rapid drying etc.

Shipping Details
FAQ

1. Who is Core-Tex?
Shenzhen Core-Tex Composite Materials Co.,Ltd. is an emerging enterprise devoted to the high and new technology development of intensively processed fiberglass products and fiberglass composite materials products.

2. Can you provide free samples?
We can provide A4 format size samples for free.

3.Who pay the courier fee?
Customers need to pay the courier fee.

4. Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.

5.What’s your delivery time for PTFE coated glass cloth?
Within 5000 square meters: 7~15 days after deposit received.
5000~10,000 square meters: 15~25 days after deposit received.
More than 10,000 square meters: According to delivery terms.
Remark: Expected circumstances may lead to delivery delay, customer will be informed in time.

6.What’s your payment methods?
T/T, L/C, Paypal or Western Union.

7.What’s your shipping port?
Shanghai, Shenzhen or according to customer’s request.
