PTFE coated fiberglass fabric used for adhesive tape base fabric

FOB Reference Price:Get Latest Price
US $3-16 / Square Meter | 100 Square Meter/Square Meters (Min. Order)
Supply Ability:
200000 Square Meter/Square Meters per Month
Port:
Shanghai or shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Core-tex
Model Number:
CT-PTFE
Application:
Wall/Roof covering Cloth
Weight:
158 GSM - 1740 GSM
Surface Treatment:
PTFE Coated
Width:
It can be customized
Weave Type:
Plain Woven
Yarn Type:
E-Glass
Alkali Content:
Alkali Free
Standing Temperature:
-140~360℃
Thickness:
0.08 mm - 0.95 mm
Roll Length:
IT CAN BE CUSTOMIZED
Good Features:
Non-adhesive /Corrosion resistance/Fireproofing /flame resistance
Applications:
Electrical insulation/Adhesive tape/conveyor belt/Microwave oven
Color:
black, brown, white, or customized
Weight Distribution:
IT CAN BE CUSTOMIZED
Width Max:
4300 mm
MOQ:
100 m2
Keyword:
PTFE coated fiberglass fabric used for adhesive tape base fabric
Packaging & Delivery
Packaging Details
Wooden case, big roll carton or small carton.
Detailed packing details please refer to the Detailed content in the following.
Delivery Time
5 - 25 Days after the receipt of payment
Product Description

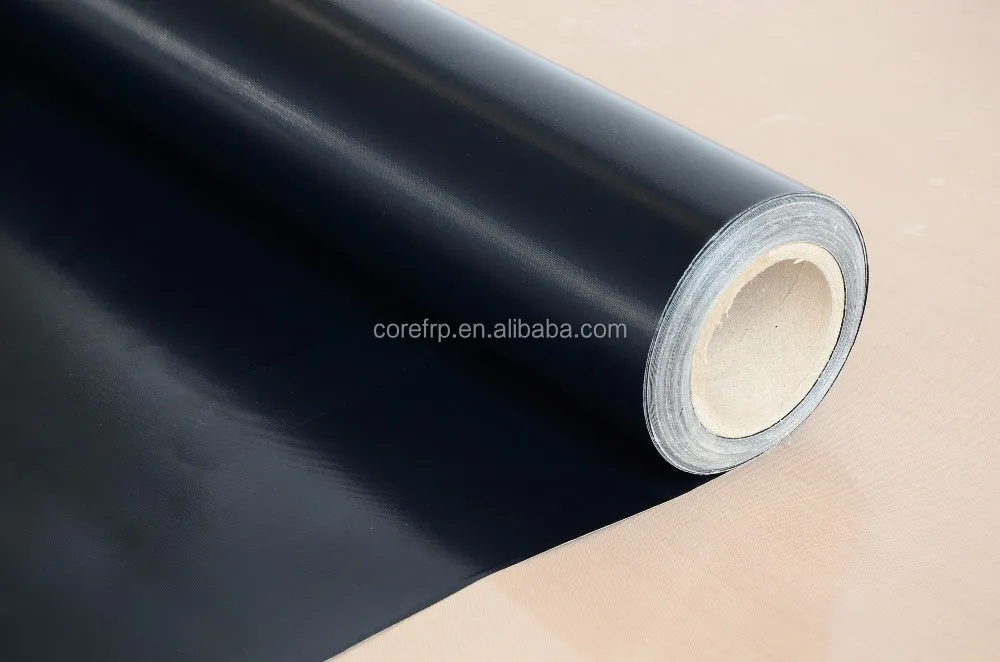

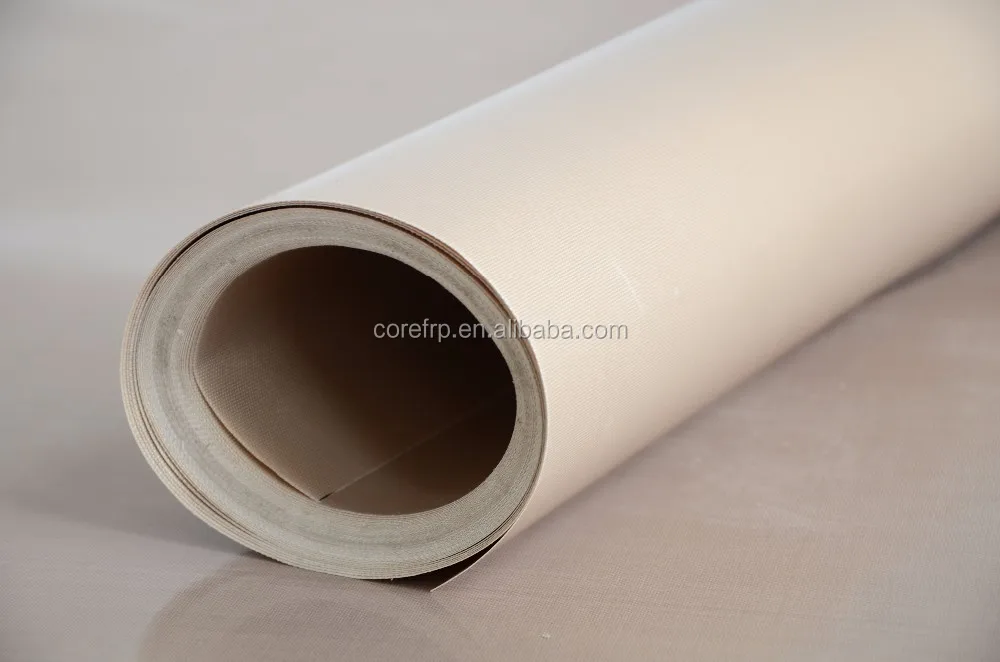

PTFE coated fiberglass fabric used for adhesive tape base fabric

PTFE coated fiberglass fabric is made of high performance fiberglass fabric impregnated with PTFE suspension emulsion. It is a new high performance and multipurpose composite material.
It is widely used in paper, food, environmental protection, printing & dyeing, apparels, chemicals, glass, pharmaceuticals, electronics, insulation, construction ( membrane ceiling structure), grinding wheel, mechanical etc.

Model
Color
Thickness
Width
Weight
Temperature Resistance
CT-0008
Brown
0.08mm
1250mm
158±5g/㎡
-140~360℃
CT-0008C

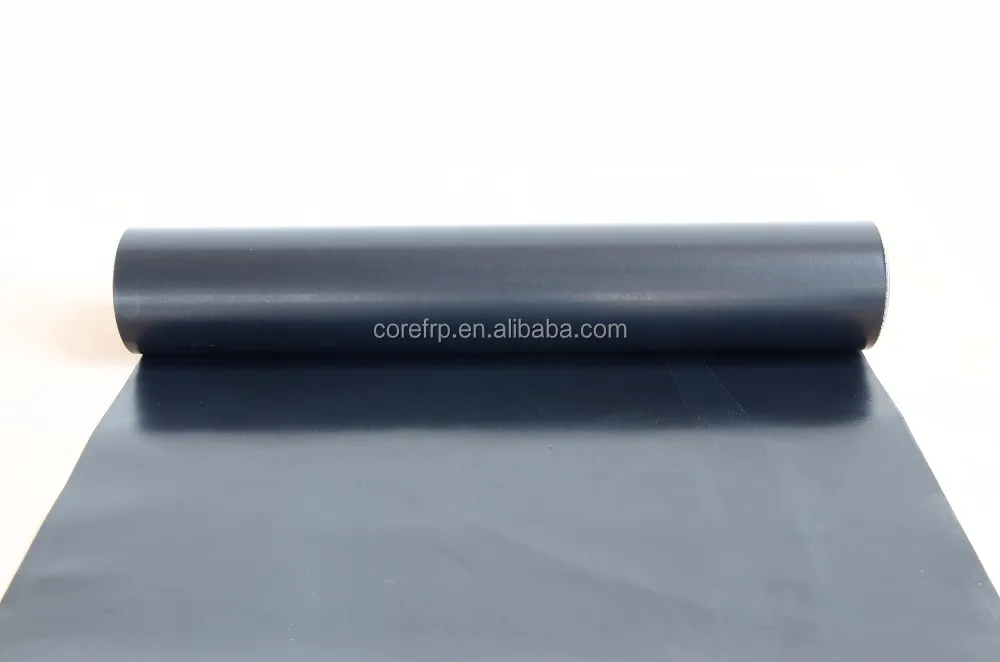

Black
0.08mm
1250mm
160±5g/㎡
-140~360℃
CT-0013A
Brown
0.13mm
1250mm
290±5g/㎡
-140~360℃
CT-0013B
Brown
0.13mm
1250mm
215±5g/㎡
-140~360℃
CT-0013C
Brown
0.13mm
1250mm
180±5g/㎡
-140~360℃
CT-0013G

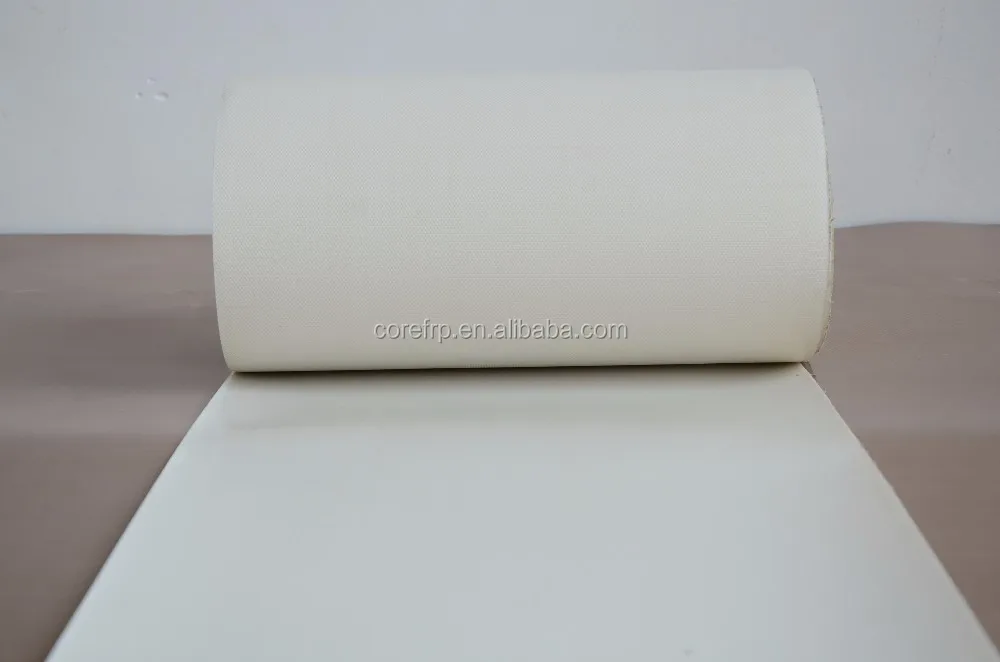

White
0.13mm
1250mm
290±5g/㎡
-140~360℃
CT-0018G
White
0.18mm
1250mm
310±5g/㎡
-140~360℃
CT-0018C
Black
0.18mm
1250mm
415±5g/㎡
-140~360℃
CT-0025A
Brown
0.25mm
1250mm
490±5g/㎡
-140~360℃
CT-0025B
Brown
0.25mm
1250mm
380±5g/㎡
-140~360℃
CT-0025D
Brown
0.25mm
1250mm
320±5g/㎡
-140~360℃
CT-0025JK
Brown
0.25mm
2250mm
490±5g/㎡
-140~360℃
CT-0025JK2
Brown
0.25mm
2550mm
490±5g/㎡
-140~360℃
CT-0029C
Black
0.29 mm
1200mm
400±5g/㎡
-140~360℃
CT-0030C
Brown
0.30mm
2600mm
520±5g/㎡
-140~360℃
CT-0030JK
Brown
0.30mm
2600mm
620±5g/㎡
-140~360℃
CT-0035JK
Brown
0.35mm
2500mm
670±5g/㎡
-140~360℃
CT-0035JK1
Brown
0.35mm
2500mm
620±5g/㎡
-140~360℃
CT-0035JK2
Brown
0.35mm
2500mm
560±5g/㎡
-140~360℃
CT-0035C
Black
0.35mm
2500mm
670±5g/㎡
-140~360℃
CT-0040A
Brown
0.40mm
2000mm
820±5g/㎡
-140~360℃
CT-0045
Brown
0.45mm
3100mm
880±5g/㎡
-140~360℃
CT-0050JK1
Brown
0.50mm
2350mm
950±5g/㎡
-140~360℃
CT-0050JK
Brown
0.50mm
2350mm
900±5g/㎡
-140~360℃
CT-0050A
Brown
0.50mm
2350mm
1040±5g/㎡
-140~360℃
CT-0050B
Brown
0.50mm
2350mm
1020±5g/㎡
-140~360℃
CT-0055
Brown
0.50mm
1350mm
700±5g/㎡
-140~360℃
CT-0065
Brown
0.65mm
2600mm
1150±5g/㎡
-140~360℃
CT-0070JK
White
0.70mm
2750mm
1200±5g/㎡
-140~360℃
CT-0070JK1
White
0.70mm
2750mm
1040±5g/㎡
-140~360℃
CT-0073JK
White
0.73mm
2750mm
1480±5g/㎡
-140~360℃
CT-0075JK
White
0.75mm
2750mm
1590±5g/㎡
-140~360℃
CT-0083
White
0.83mm
2800mm
1740±5g/㎡
140~360℃
CT-0095
White
0.95mm
3050mm
1740±5g/㎡
-140~360℃
CT-0090
Brown
0.90mm
4000mm
1550±5g/㎡
-140~360℃
CT-0090A
Black
0.90mm
4000mm
1650±5g/㎡
-140~360℃

Main Features

* High-temperature resistance( -140℃ ~ 360℃).
* Non-sticky and easy to clean.
* Food grade and nontoxic.
* Heat resistance and fireproofing.
* Resistant to chemical corrosion, strong acid and alkali.
* Good dimensional stability, high strength, and has good mechanical properties.
* Low friction coefficient (0.05-0.1), the best choice for oil-free self-lubrication.
* Light transmittance up to 6~13 %.
* High insulation property (the value of dielectric constant is only 2.6, and the value of tangent is less than 0.0025).
* Ultraviolet-proof and anti-static.

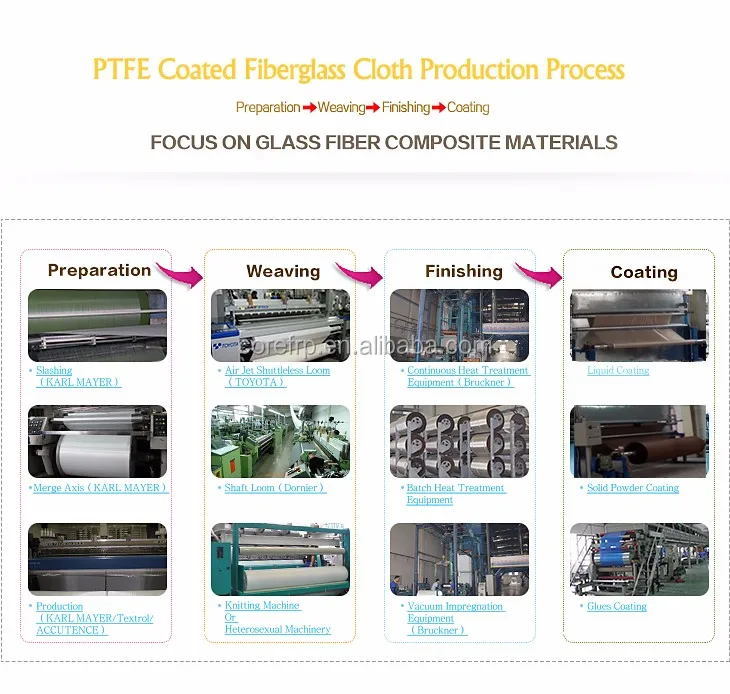

Production Process
Classification

Common industrial grade

High temperature PTFE coated fiberglass fabric has good heat resistance, corrosion, non-stick properties, mainly used in various industrial fields.

Standard grade

Using imported materials to produce, in addition to good corrosion resistant properties, the surface is more smooth, flat and non-sticky. It can be applied to general industrial, and more advantages in some products used plastic stripping or separation sheets, gaskets and off mold surface.

Food grade

Smooth surface, non-sticky, heat resistance and easy to clean. It is safer to use in the food industry.

Anti static grade (anti-static cloth)

In addition to the traditional performances of PTFE coated fiberglass fabric, through a special process, so that it has anti-static properties to meet specific customer requirements.

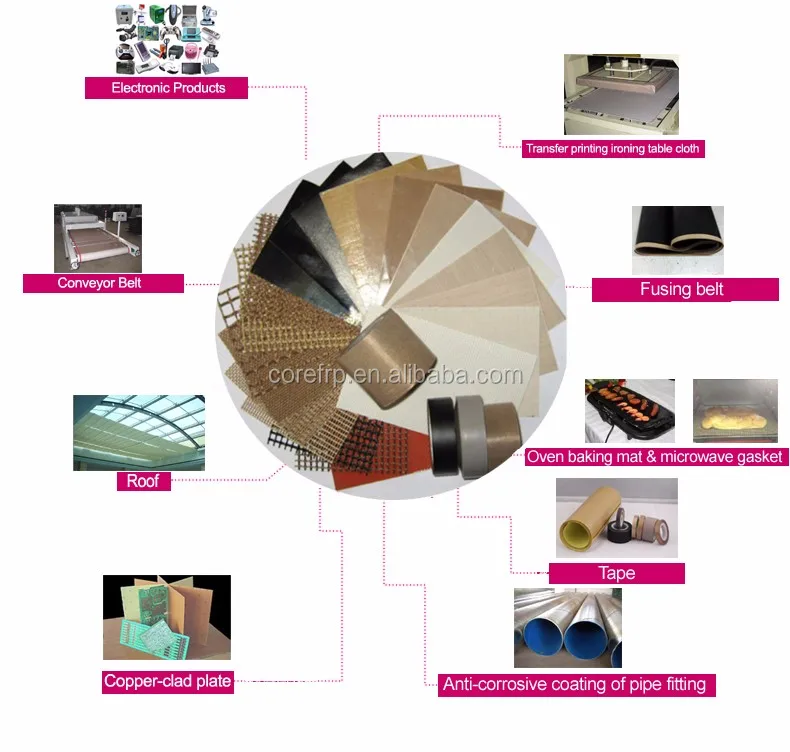

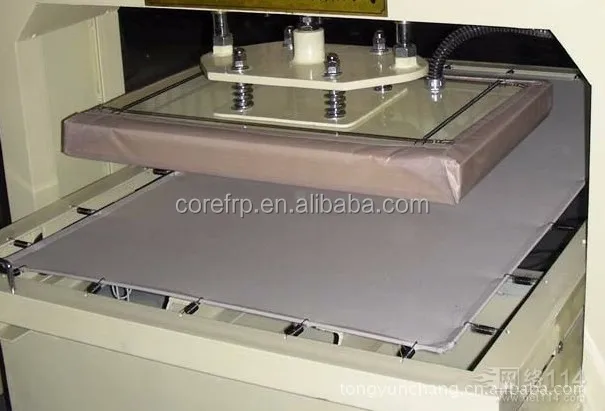

Application

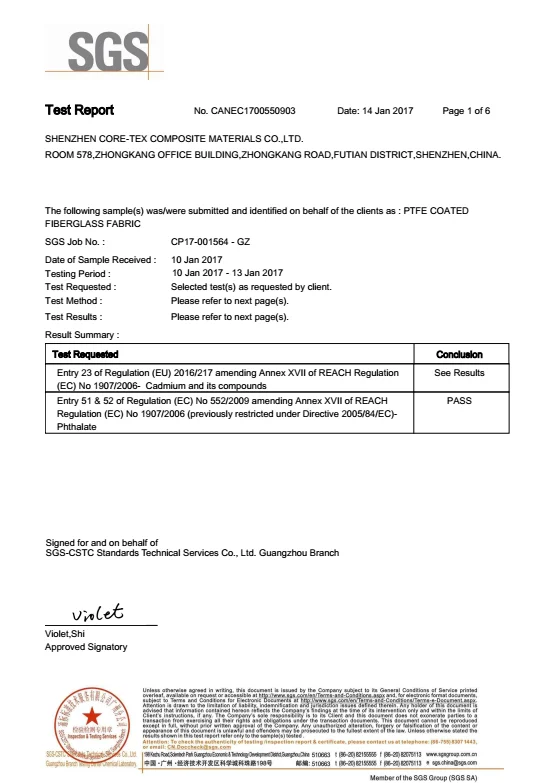

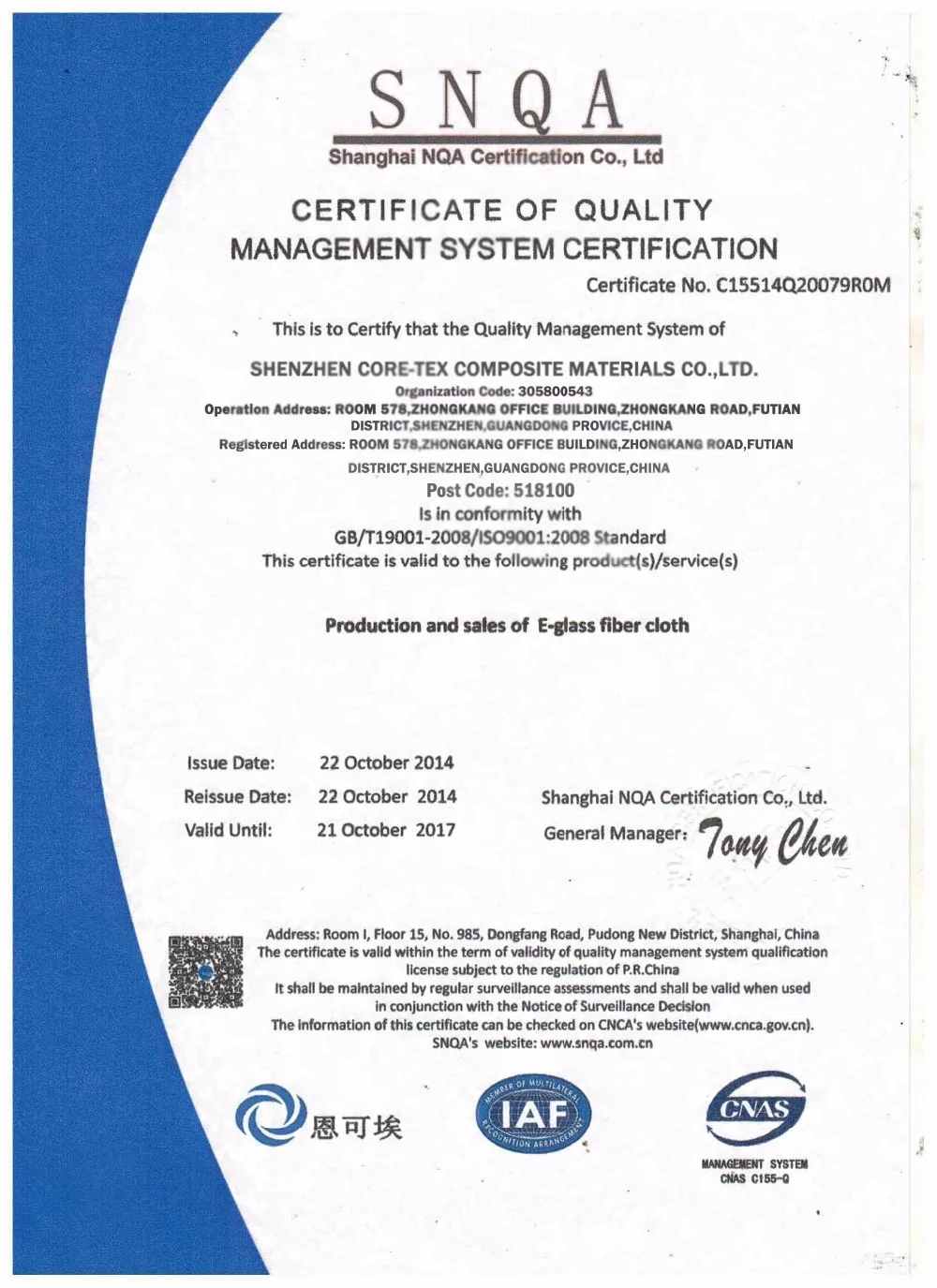

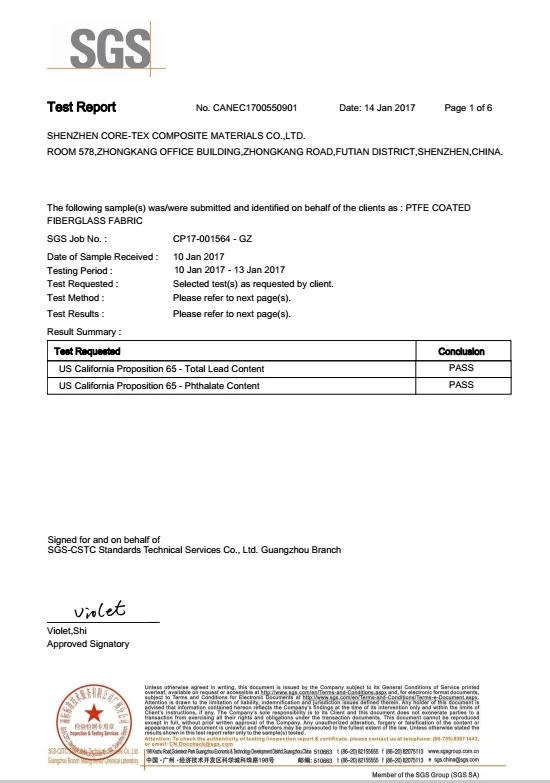

Certifications
Packing & Delivery

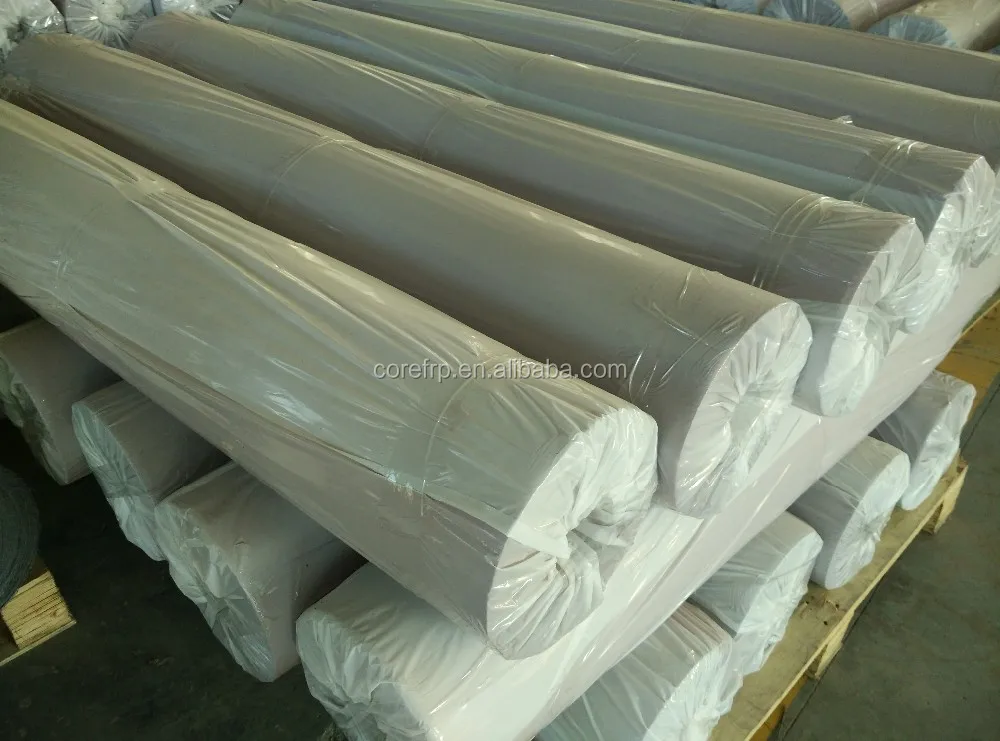

                            Roll

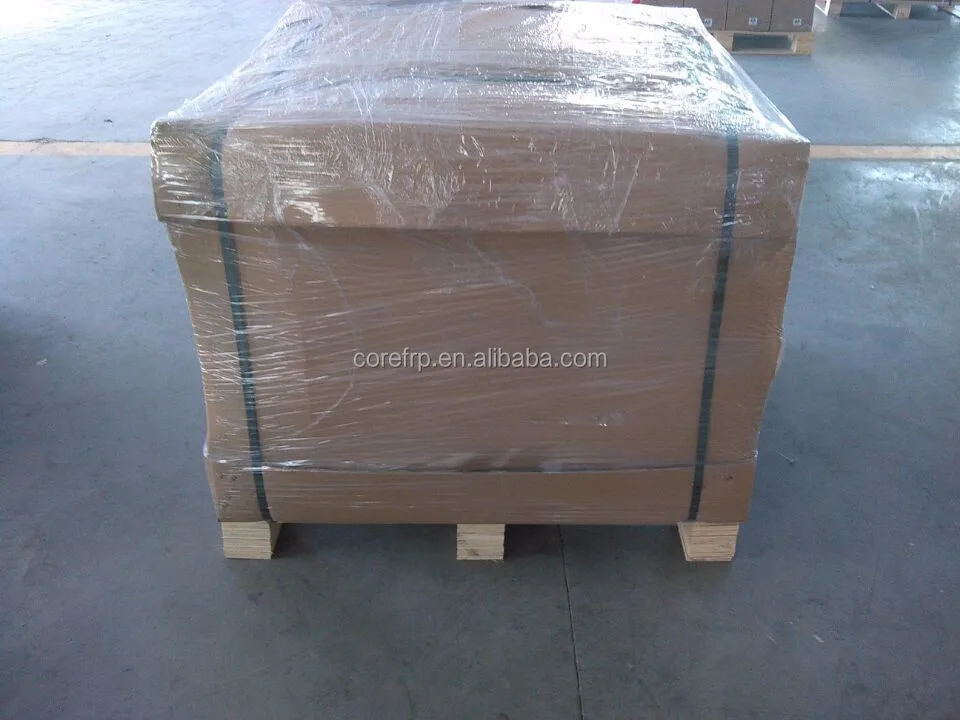

                 Carton+Pallet

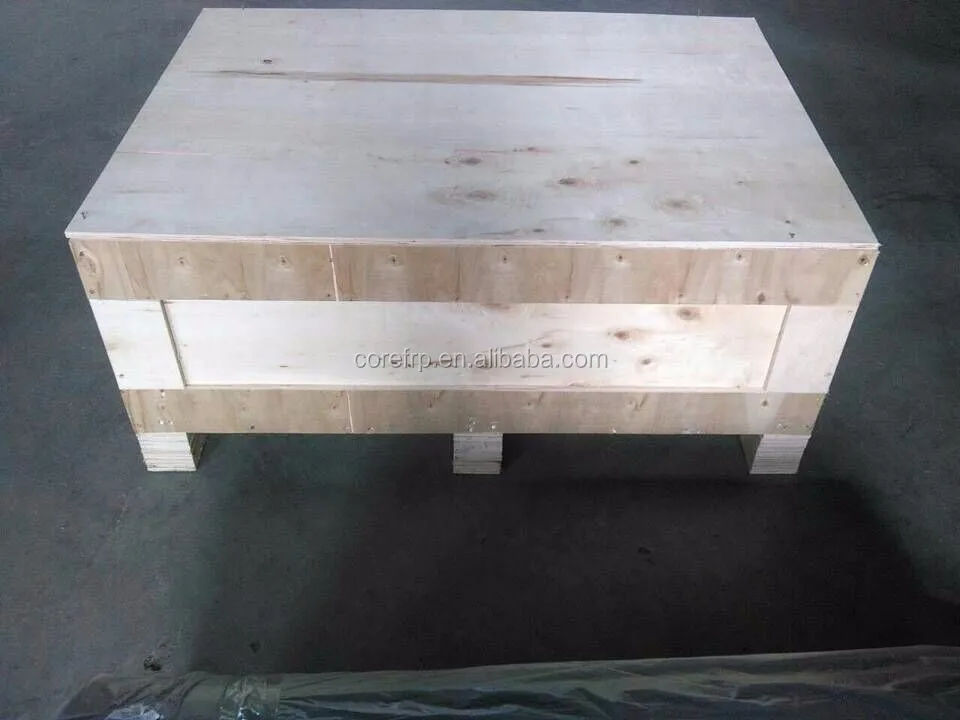

                Wooden case
